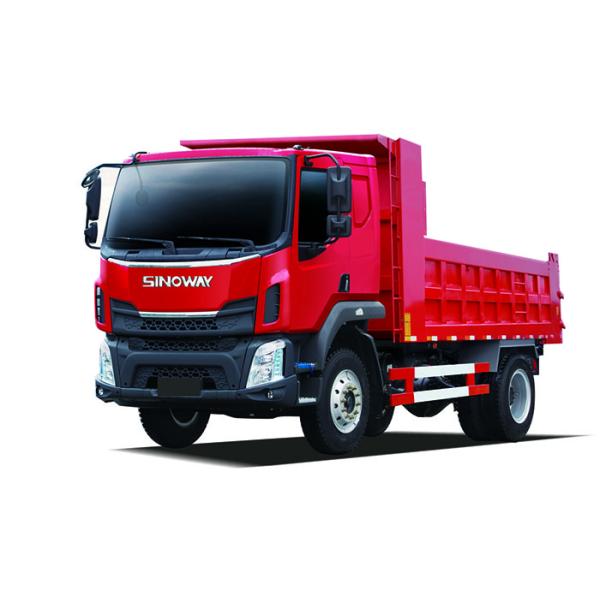

SINOWAY Construction Dump Truck 180hp Rated Power ISO9001 Certification

Product Categories

Sinoway Industrial (Shanghai) Co., Ltd.

Contact Now

Name: SINOWAY Construction Dump Truck 180hp Rated Power ISO9001 Certification
Brand: SINOWAY
Price: 1 USD

Brand Name : SINOWAY

Model Number : SWDT18042YF

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50 units per month

Delivery Time : 30 days

Packaging Details : Nude

Product name : Dump Truck Tipper

Engine : FORD tech diesel engine

Rated power : 180HP

Max. torque : 550N.m/1300~1600rpm

Axle loading capacity(F/R) : 5000/13000Kg

Max. traveling speed : 80km/h

Contact Now

High Quality SINOWAY Heavy Duty Dump/Tipper Truck For Sale Construction Dump Truck

Engine
Make	FORD tech diesel engine
Type	Six cylinder,direct injection turbocharged,water cooled
Rated power	180HP
Torque	2600rpm
Fuel consumption	550N.m/1300~1600rpm
Main Technical Specification
N.V.W	6850Kg
Payload capacity	11150Kg
G.V.W	18000Kg
Axle loading capacity(F/R)	5000/13000Kg
Max. traveling speed	80km/h
Grade ability	48%
Approach angle	20°
Departure angle	21°
Dimensions
Overall size(L×W×H)	6945×2490×3050mm
Wheel base	3600mm
Front tread	1328mm
Rear tread	1767mm
Transmission System
FULLER tech 8 gear transmission
Ratio
Forward	11.7, 8.23, 5.83, 4.07, 2.87, 2.02, 1.43, 1
Reverse	11.88, 2.92
Dump Body
Overall length	4200mm
Overall width	2300mm
Overall height	600mm
Side plate thickness	3mm
Under floor thickness	4mm
Hoist	Middle lifting
Steering System
Driving position	Right hand drive
Axle And Tyre
Front axle	Reinforced
Rear axle	Reinforced
Rear axle ratio	6.166
Tyre size	10.00R20
Electric System
Batteries	212 Volt – 150 AH2
Alternator	24 Volt/70A
Starter	24 Volt/7.80kw
Clutch And Brake
Single-plate dry coil-spring clutch, hydraulically operated with air assistance
Service brake	Dual circuit compressed air brake
Parking brake	Spring energy operating on rear wheels
Auxiliary brake	Engine exhaust brake
Suspension
Front suspension	9 semi-elliptic leaf spring
Rear suspension	12 semi-elliptic leaf spring

SINOWAY Construction Dump Truck 180hp Rated Power ISO9001 Certification
